Leitz Wetzlar Elmarit-R 135mm f 2.8

Currency:USD Category:Cameras & Photo Start Price:375.00 USD Estimated At:750.00 - 1,000.00 USD
Leitz Wetzlar Elmarit-R 135mm f 2.8
If you want to see an enlarged image, click on the thumbnail image in the lower left of the main image.
You can download a higher resolution image by clicking on the title below the enlarged image.
You can request extra images to be added by contacting HWAC at uwe@fhwac.com or by calling 775-851-1859

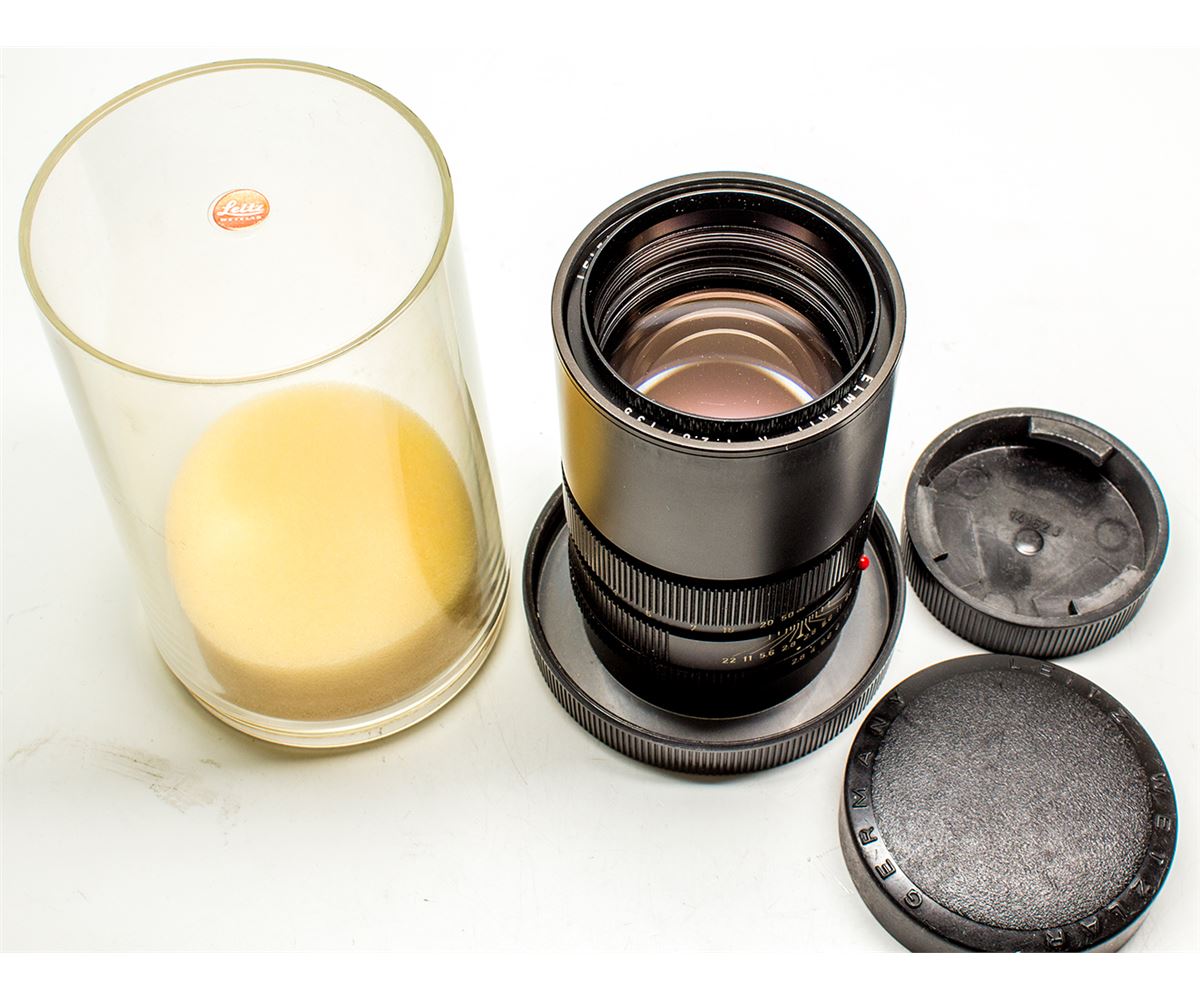

Leitz Wetzlar Elmarit-R 135mm f 2.8 Serial Number: 2305426



Leica Elmarit-R 135mm f/2.8 is one of the first manual focus lenses in Leica's reflex lens lineup. First designed in 1964, the lens went through a redesign in 1976, but was eventually discontinued in 1998. The first version of the lens was available with Series 7 filter thread, while the later model was offered in both Series 7 as well as E55 threads (the later model was manufactured in Canada). The lens is commonly available on used markets like eBay, with good quality late copies fetching ~US$250. The version tested in this review is an E55 model, serial number 2966817.



The optical construction of the lens consists of 5 elements in 4 groups - nothing fancy here. The build quality is rock solid - the lens feels and looks sturdy, thanks to the all metal barrel, aperture and focus rings. Even the built-in lens hood is all metal. All that metal obviously adds weight, and at 730g (1.6lb), Elmarit-R 135mm f/2.8 E55 is one of the heavier medium telephoto lenses. Fortunately, the lens is pretty compact, measuring 67 x 93mm (2.6 x 3.66in), although the barrel extends by a centimeter or so when focusing towards the closeup. The focus ring is pretty smooth to operate and the aperture is snappy - expected quality from a Leica branded lens. The minimum supported aperture is f/22 (the aperture ring moves in half f-stop increments) and the minimum focusing distance is 1.5m (4.9ft). The lens accepts 55mm screw in filters.



Product Description

Telephoto lens for the Leica R series.



Leica Order No. - 11 211 LLC - 184

Production era - 1968-1998 < 50,800 lenses

Variants - ROM conversion versions, this item is 3 CAM, not ROM

Number of lenses /groups - 5 / 4

F stop range - f/2.8-f/22

Closest focusing distance - 1.5 m / 4.92 ft

Smallest object field - 220 x 330 mm

Angle of view diagonal - 18 degrees

Filter type - E55

Accessories - ELPRO close focusing attachment type 4; Cap 14289, 14089 or 14809.

Dimensions length x diameter - 93 x 67 mm /3.66 x 2.6 in

Weight - 730 g /1.23 lb

Inscriptions - ELMARIT-R 1:2.8/135 LEITZ CANADA 2XXXXXX

ELMARIT-R 1:2.8/135 LEITZ WETZLAR 2XXXXXX

ELMARIT-R 1:2.8/135 E 55 3XXXXXX LEICA

Designer - Walter Mandler
