Nikkor 8mm Fisheye f 2.8 Manual Focus Lens

Currency:USD Category:Cameras & Photo Start Price:600.00 USD Estimated At:1,250.00 - 2,500.00 USD
Nikkor 8mm Fisheye f 2.8 Manual Focus Lens
SOLD
850.00USD+ (191.25) buyer's premium + applicable fees & taxes.
This item SOLD at 2015 Apr 17 @ 08:38UTC-7 : PDT/MST
If you want to see an enlarged image, click on the thumbnail image in the lower left of the main image.
You can download a higher resolution image by clicking on the title below the enlarged image.
You can request extra images to be added by contacting HWAC at uwe@fhwac.com or by calling 775-851-1859

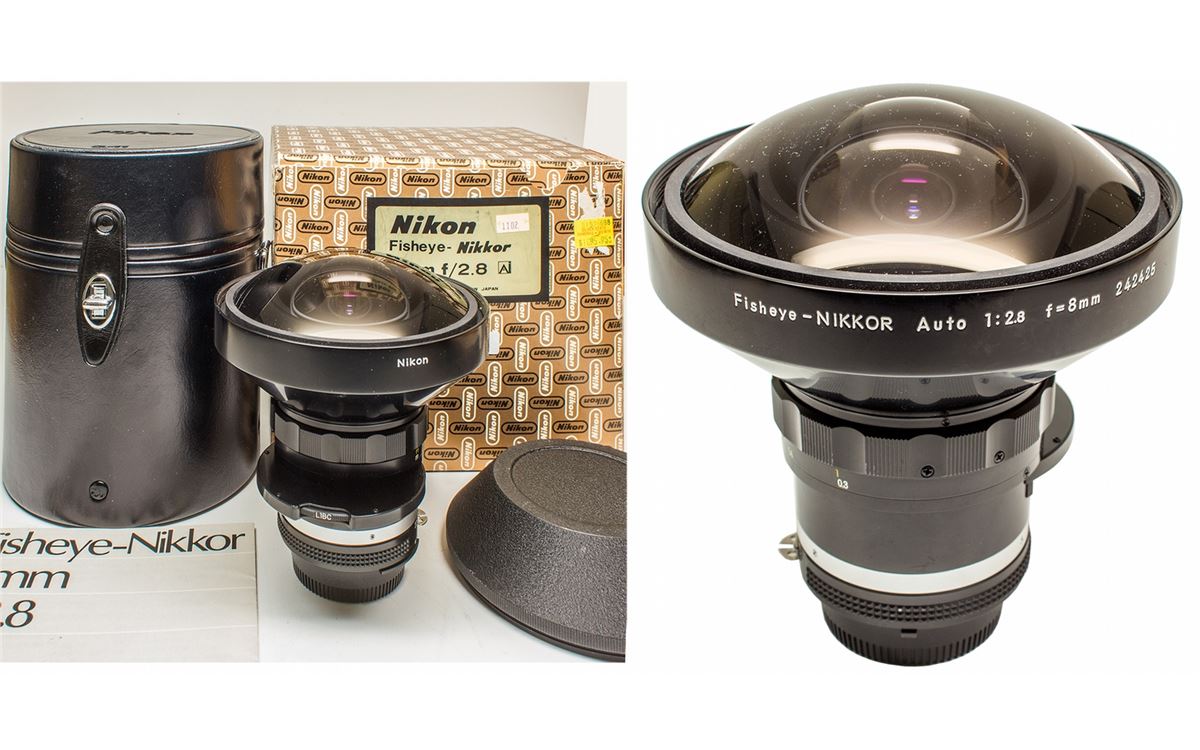

Fisheye-Nikkor 8mm f/2.8 Auto in original box with all paperwork and case.



Introduced in 1970. This is the first Fisheye Nikkor lens that has adopted the automatic aperture diaphragm (See earlier Fisheye-Nikkor 8mm f8.0). The lens speed of f/2.8 is the fastest in the array of Fisheye Nikkor lenses. The most significant design of the lens when compared with older versions is it obviates the need for locking up the mirror and use of special accessory finders as with many older fisheye Nikkor lenses. This is the brightest Fisheye lens and is provided with the automatic diaphragm coupled to the exposure meter. Thus, viewing and focusing can be done on the focusing screen with the f/2.8 brightness. Another significant difference is the ability to focus with the new lens design where the mechanism provides graduation both in meters and feet up to 0.3m and 1 ft. Older versions of Auto Fisheye-Nikkor lenses have fixed focus design.



The automatic diaphragm stops down to f/22. There are five built-in filters on a rotating turret (see picture below) which has added a layer of flexibility to the lens functionality. It is a lens combining some good elements in its overall compactness, its fast lens speed, automatic diaphragm and through-the-lens viewing capability, as well as the unique fisheye pictorial qualities it delivers.



Specifications:



Focal length: 8mm

Maximum aperture: 1:2.8; Lens construction: 10 elements in 8 groups

Picture angle: 180°Meter coupling prong: Integrated (fully open exposure metering)

Distance scale: Graduated both in meters and feet up to 0.3m and 1 ft

Aperture scale: f/2.8 - f/22

Aperture diaphragm: Manual

Attachment size: 120mm (P=1.00)

Filter: Built-in, L1 A, Y48, Y52, 056 & R60

Dimensions: 23mm dia. X 140mm length (4-27/32 in. x 5-1/2 in.)

Weight: 1kg (2.2 lb)

Accessories: 120mm screw-in front cap (109 - 00 - 232), rear cap type 3F (108 - 03 - 400), leatherette case (108 - 03 - 305)
